Mini Digital Lab Bench Power Supply Voltage Regulator Power Source Adjustable Switch DC Power Supply Laboratory

Mini Digital Lab Bench Power Supply Voltage Regulator Power Source Adjustable Switch DC Power Supply Laboratory
  • Продавецjllbetwin.info
  • Список ценUS $51.82piece
  • Продажная ценаUS $51.82piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,2 (535)

Oписание продукта

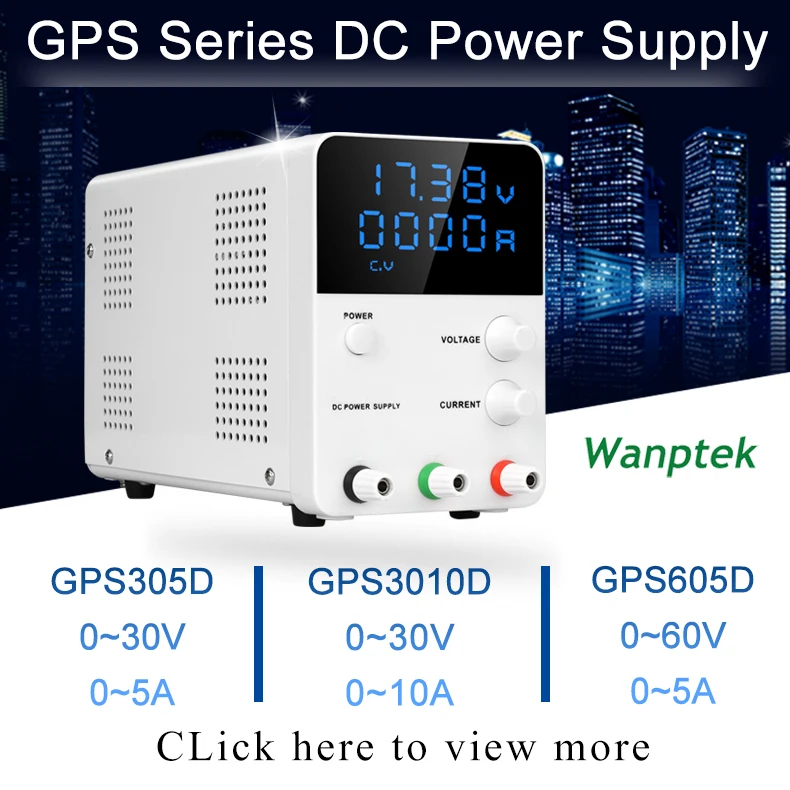

Mini Digital Switching DC Power Supply 30V 10A Voltage Regulator Power Source 0.01V 0.001A Continuous Adjustable DC Power Supply



Notes:

Dear friend.Due to design weight issues.

GPS series products The total weight of the product containing the power cord exceeds 2kg,send from China.Can\'t send most logistics methods.Buy Russian warehouse containing power cord.

So we have to remove the power cord,our goods do not have the Power Cable.Pls understand.

The power cord used by our power supply is a general specification.



Features:

1, With more extensive range of input voltage at 230V/110V.
2,With high frequency operation can reduce the size of power transformer.
3,With small size, light weight and high density power.
4,Entire efficiency rate higher up to 70%.
5,Zero adjustment for the output of voltage and current.
6.Short circuit protection!


Parameter Specification:

Operation Environment : Indoor use, Altitude up to 2000m, Installation Category II,Pollution degree 2.
Operation Temperature & Humidity : 0 ~ 40℃, RH<80%.
Storage Temperature & Humidity : -10 ~ 70℃, RH<70%.


Constant Voltage Operation:

(1) Output Voltage ranges from 0 to rating voltage with continuous adjustment .
(2) Voltage regulation:
Line regulation<5mV.
Load regulation<5mV.
(3) Recovery time<500us(50% Load change, minimum load 0.5A).
(4) Ripple & Noise<5m Vrms, 100m Vp-p
(5) Temperature coefficient<100p pm/C.


Insulation:

Between Chassis and Output Terminal : >20M ohm (DC500V).
Between Chassis and AC Cord : >30M ohm (DC500V).

Packing list:
1. Power Supply X 1
2. Load Cable X 1
3. Operation Guide X 1
